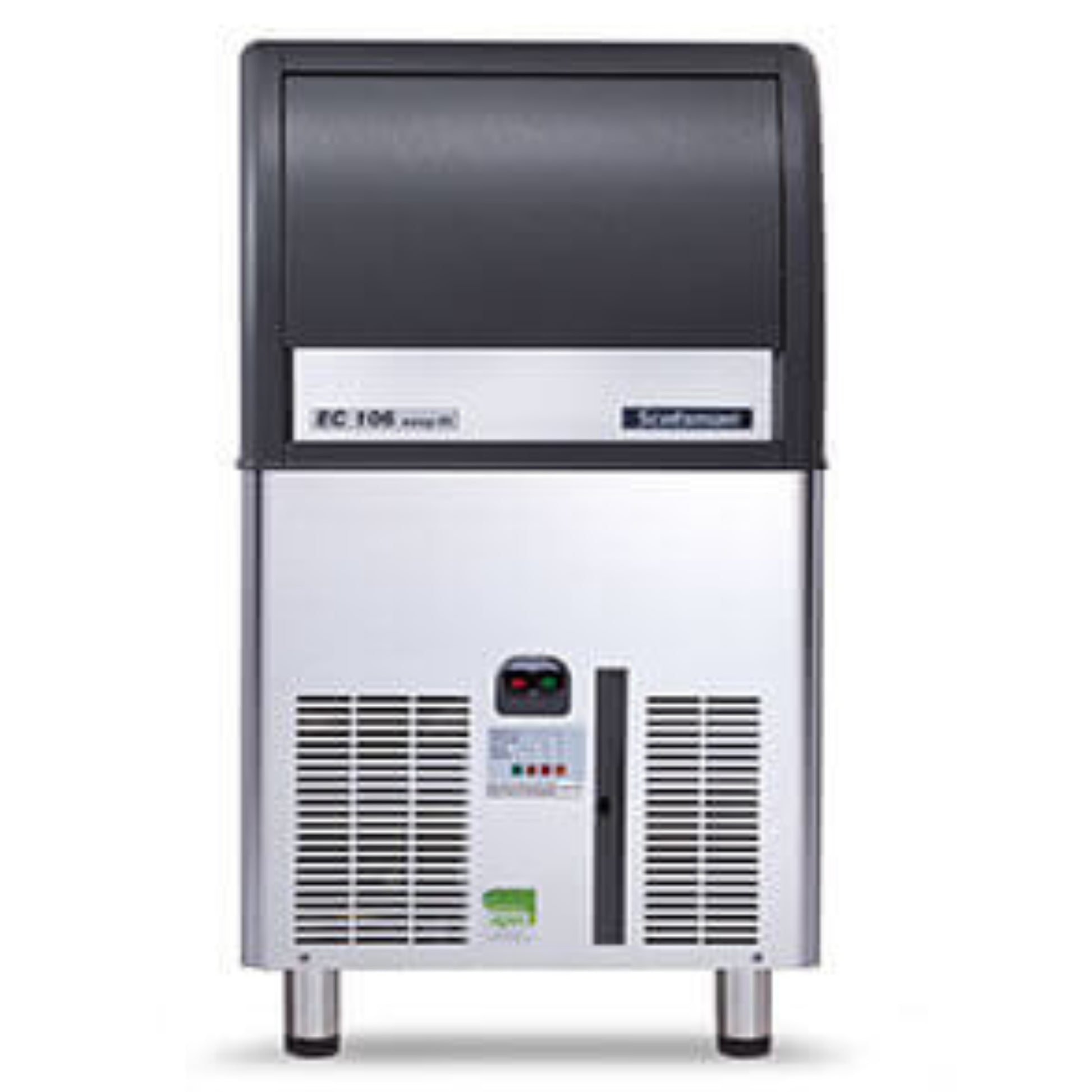

Scotsman Ice Maker - EC106

The Scotsman EC106 is a compact, self-contained ice maker designed for commercial use, producing up to 50 kg of gourmet crystal-clear supercubes daily. Its efficient design and advanced features make it ideal for establishments like cafés, bars, restaurants, and hotels.

Key Features:

1. Ice Production: Up to 50 kg (110 lbs) per 24 hours
2. Storage Capacity: Built-in bin holds up to 23 kg (50 lbs) of ice
3. Ice Cube Size: Medium gourmet cubes (20 g each), approximately 29 mm x 34 mm
4. Cooling System: Available in air-cooled and water-cooled models
5. Refrigerant: CFC-free R-134a
6. Construction: Durable stainless steel exterior
7. Controls: Simple electromechanical controls with front ON/OFF switch
8. Maintenance Indicators: Routine maintenance visible alarm light
9. Microbial Protection: Integrated vapor-based microbial control system pouch in the ice-storage area
10. Water System Protection: Patented anti-scale system
11. Water Discharge: Progressive Water Discharge (PWD) system for remote water drain up to 15 meters
12. Antimicrobial Protection: AgION antimicrobial agent embedded in molded plastic parts

Specifications:

1. Dimensions: 531 mm (W) x 600 mm (D) x 840 mm (H)
2. Weight: Approximately 47 kg
3. Voltage: 230V / 50Hz / 1 Phase
4. Power Consumption: 550W
5. Water Inlet: 3/4” gas connection
6. Water Outlet: 1/2” hose
7. Ambient Temperature Range: 10°C to 40°C
8. Water Temperature Range: 5°C to 35°C
9. Water Pressure: 1 bar minimum, 5 bar maximum

Warranty:

1. Manufacturer's Warranty: 3 years, subject to certain limitations and exclusions

The Scotsman EC106 offers a reliable and efficient solution for establishments requiring a consistent supply of high-quality ice. Its compact design, advanced features, and robust construction ensure durability and ease of maintenance. Whether you choose the air-cooled or water-cooled model, the EC106 is engineered to meet the demands of commercial environments.
